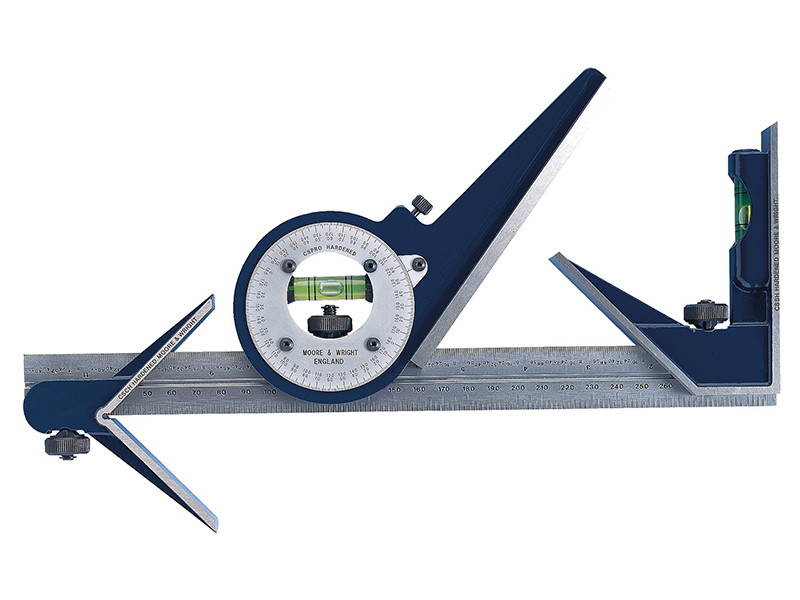

Moore & Wright CSM300 Precision Combination Set 300mm

The Moore Wright CSM Precision Sets are supplied with a rule (graduated both sides), Protractor head, Square head and Centre head. The datum faces are fully hardened and ground to resist wear. There is a centrally mounted protractor vial allows unrestricted viewing and the protractor has full 360 scale plate, graduated 0 - 180 - 0. The protractor is also fitted with a satin chrome scale plate.

The precision rules have been fully hardened and tempered with deeply etched graduations on both sides for ease of reading and long life. It has a unique rule clamp that allows positive location and clamping and a clipped corner on rule to maximise capability

Square Head offers the following fixed angles: 15, 30, 45, 60, 75 and 90.

Centre Head offers a fixed 90 angle, for finding the centre of round bar stock up to 120mm diameter.

MAWCSRM600 MAWCSRME24 are rules specifically designed for use with the Combination Sets (MAWCSM300 MAWCSME12).

The Moore Wright CSM300 Precision Combination Set is a full set including 300mm rule (graduated both sides), Protractor head, Square head and Centre head.

Measurements: mm and 0.5mm on both sides; numbered every 10mm.
