Gedore Reaction arm L-form straight for DVV-13, 3/4" 2653400

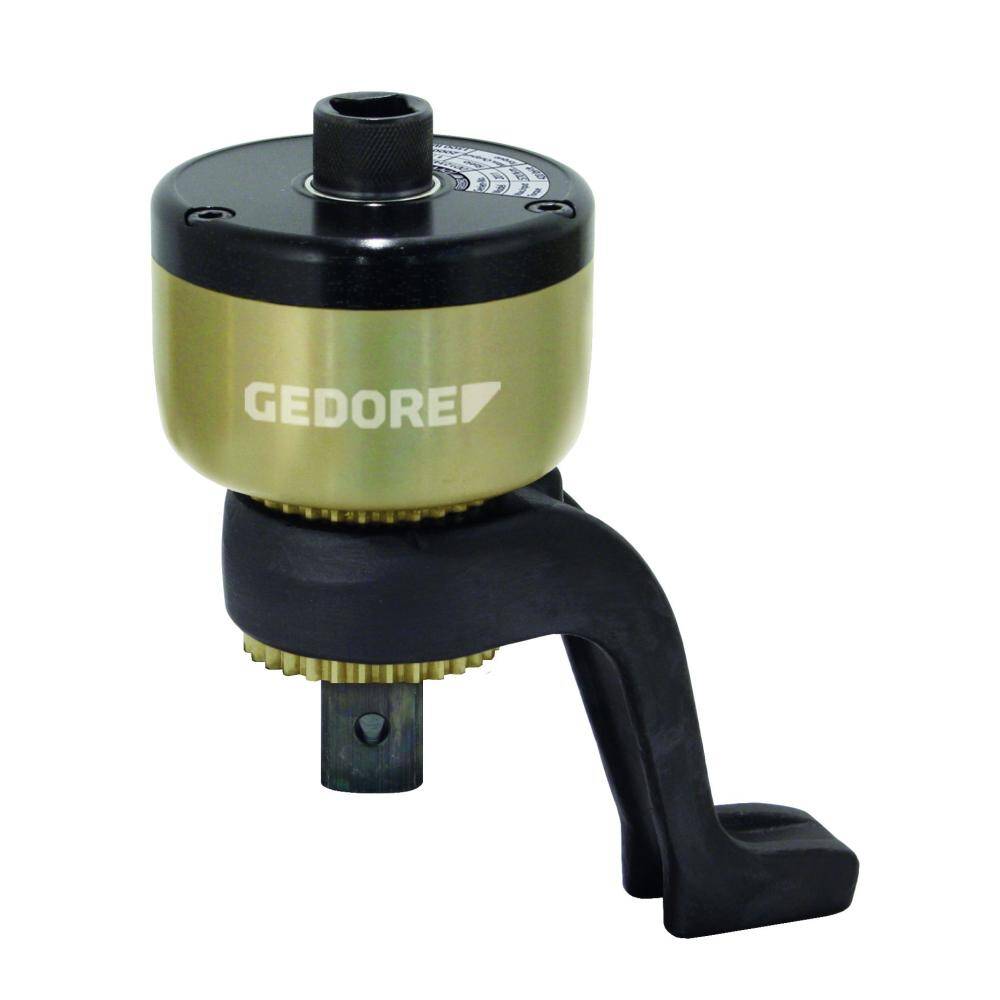

Particularly suitable for: • Industry, construction sites, car and truck garages, agricultural technology • Bridge, aircraft and railway construction, shipbuilding, refineries • Machinery and plant engineering, maintenance Features: • Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections • With a single-stage planet gear • High-performance aluminium housing • With Z-form offset reaction arm of chrome-vanadium steel • Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal • Multiplication at the ratio of 1:5 • Guaranteed accuracy: Better than +/- 3 % tolerance • For operation in combination with a torque wrench • 1 model for a maximum load of around a max. 1300 N·m • Also available as set (No. DVV-13ZG) with three different impact sockets - sizes 27, 30, 32 mm • Output square with drill hole for impact sockets with safety pin and ring Scope of delivery: • Torque Multiplier DREMOPLUS ALU • With Z-form offset reaction arm • Delivery in sturdy shipping case with foam insert • Factory test certificate and setting table • Detailed technical information is available on request
- Packing Unit:- 1 Piece
- Distance from Drive to Beginning of Reaction Arm (min.):- 60 mm
- Distance from Drive to End of Reaction Arm (max.):- 159 mm
- Weight:- 0.8 kg
- Width of Torque Multiplier:- 80 mm
- Height of Torque Multiplier:- 133 mm
