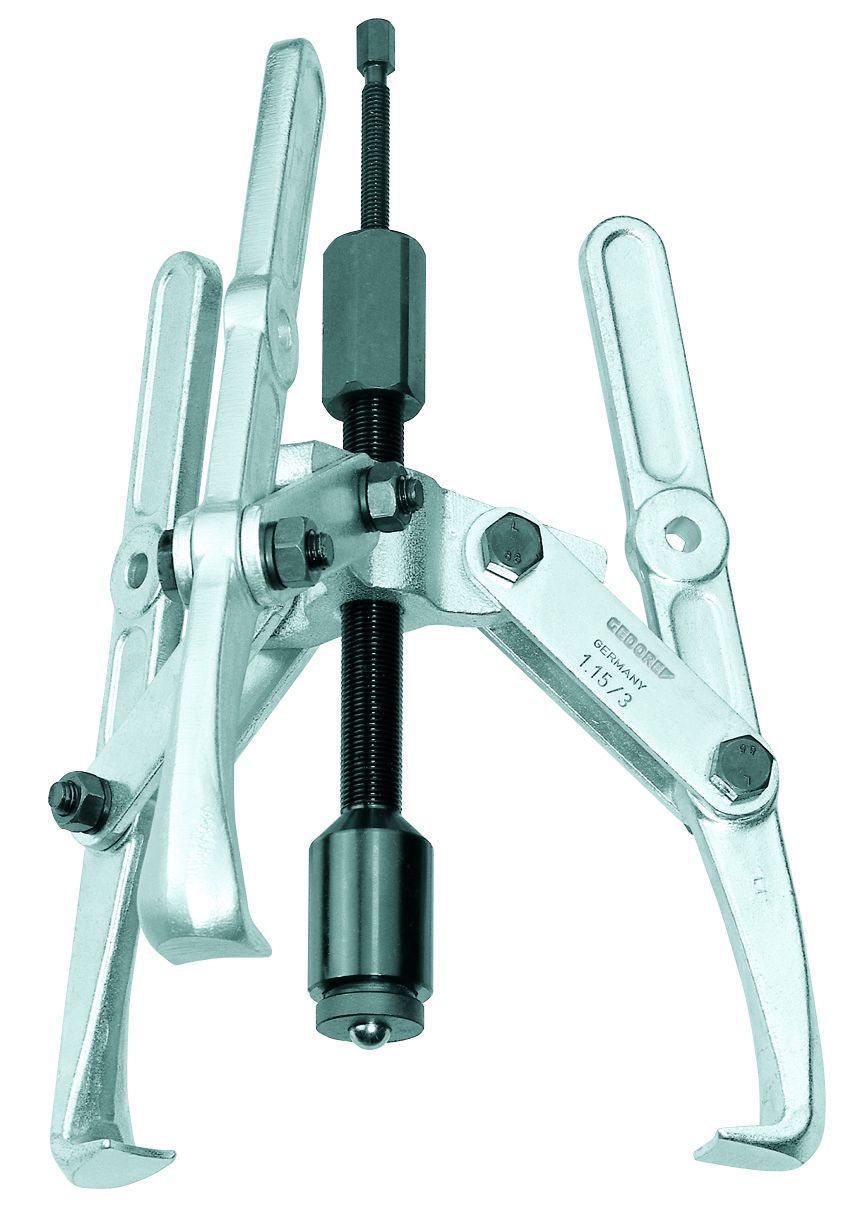

The reliable, extra-strong model for the removal of pulleys, wheels, ball bearings, etc. With technical and economical benefits due to the variable clamping reach and automatic grip of the legs. Especially suited to removing V-belt pulley wheels and flywheels mounted on longer shafts. With the hydraulic spindle, a controlled and safe pulling action is possible at all times. Also available with standard spindle – Model 1.15.
Specifications of this product:
Width Across Flat / Actuating Hexagon:- 32 mm
Clamping Spread – max – External Pulling (a, a1):- 280 mm
Width of Hooked Foot :- 32 mm, Depth of Hooked Foot (d):- 20 mm, Thickness of Hooked Foot at tip:- 3,5mm
Loading Max T:- 10 t, Packing Unit:- 1 Piece
Hydraulic Spindle:- 1.06/HSP1
Loading Max Nm:- 17 N·m
Weight:- 8.1 kg
Clamping Reach:- 310 mm
