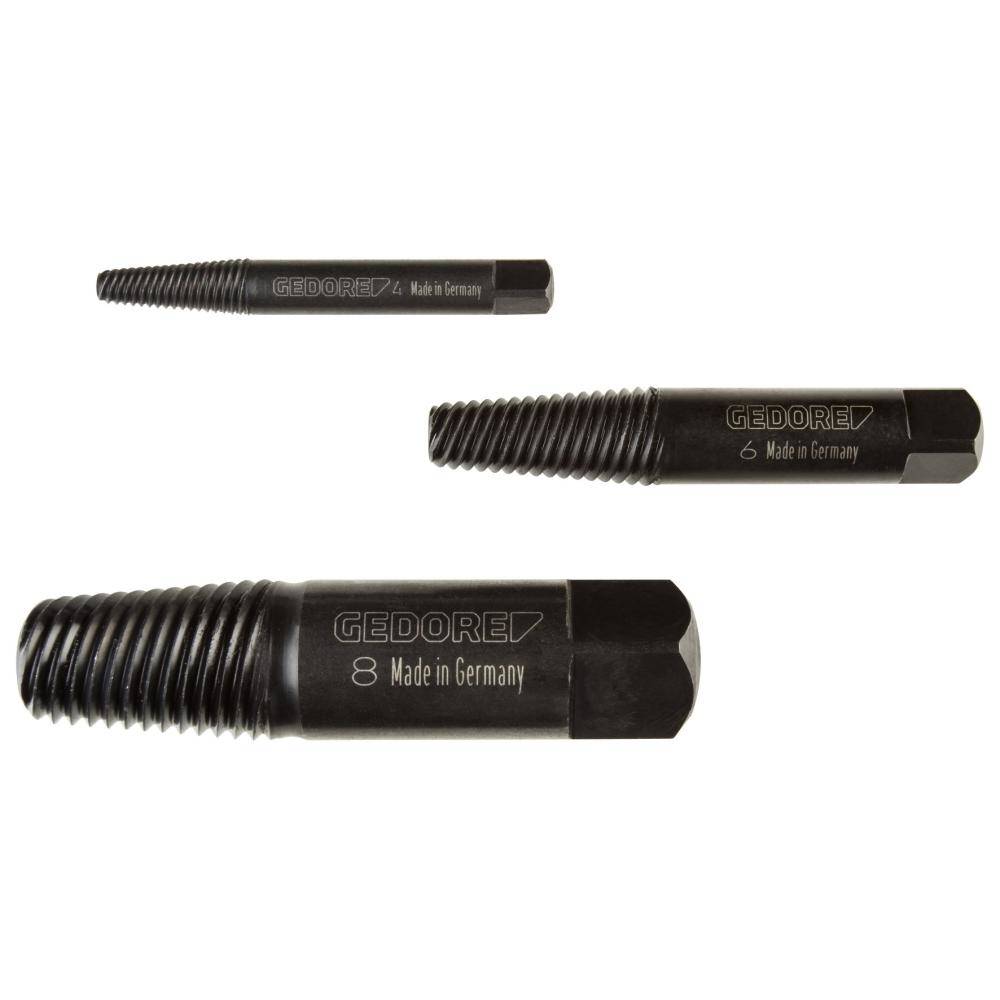

Gedore Bolt extractor size 7 M24-M33 6759110
Made from chrome-vanadium steel, 35 HRC • Operation: • Drill a central hole into the broken bolt (see table) • Turn the bolt extractor to the left into this hole until it grips and removes the bolt (penetrating oil may be necessary!) • Always choose the largest possible extractor size
- Length (L, L1):- 95 mm
- Screw Size:- M24 – M33
- Diameter (d, d2):- 12,7-19,0 mm
- Screw Size:- 1-1.3/8 inch
- Bore:- 13,7 mm
- Packing Unit:- 1 Piece
- Weight:- 0.162 kg
- Drive Connector Square (Male) Nominal Size:- 14,5 mm
