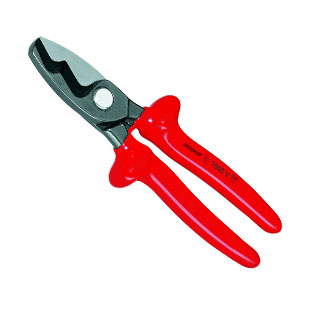

For cutting multi-core copper and aluminium cables up to Ø 20 mm. When using first and final cuts, the diameter increases to Ø 25 mm. The handle width remains within the range of ergonomic single-hand operation. First cut: Use the front blade to cut the cable sheath.
Final cut: Place the cable in the back blade and separate the wire(s). Cutting edges additionally inductively hardened. Precision ground for optimum action, new cutting-edge geometry. Adjustable screw joint with finger protection.
Not suitable for steel wire or hard-drawn copper wire. Special tool steel, forged, gun-metal finish. Handles with VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation.
- Length (L, L1):- 200 mm
- Cable Cross Section:- 70 mm²
- Cable Diameter:- 20
- Packing Unit:- 1 Piece
- Weight:- 0.423 kg
- Length:- 8.1/2 inch
| Weight | 0.423 kg |
|---|
| Dimensions | 85 × 48 cm |
|---|
| Depth | 85 |
|---|
| Weight | 0.423 |
|---|
| Height | 48 |
|---|
| EAN | 4.01E+12 |
|---|
| Brand | Gedore |
|---|
| MPN | 7682000 |
|---|
| Manufacturer Part Number | 6725050 |
|---|
| EAN | 4010886672501 |
|---|
