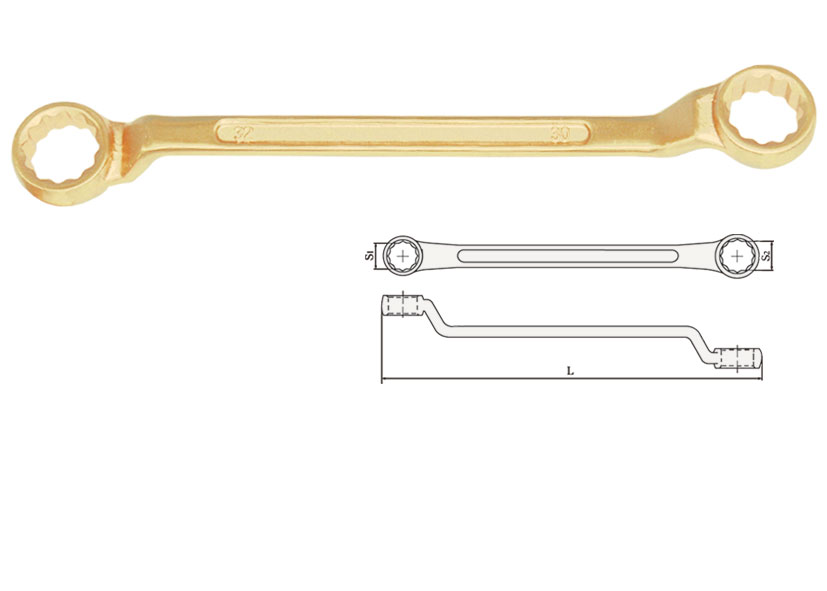

non sparking, offset double ring wrench 5.5*7 overall length 115mm
Non sparking
Used to tighten or loosen bolts and nuts, suitable for use where space is narrow or deep concavity
Die forged - DIN838
| Number | S1*S2 mm | L mm | Be-Cu g | Al-Br g | | 151-0507 | 5.5*7 | 115 | 22 | 20 | | 151-0607 | 6*7 | 115 | 25 | 23 | | 151-0709 | 7*9 | 130 | 50 | 46 | | 151-0810 | 8*10 | 130 | 55 | 50 | | 151-0911 | 9*11 | 140 | 70 | 65 | | 151-1011 | 10*11 | 140 | 80 | 75 | | 151-1012 | 10*12 | 140 | 85 | 78 | | 151-1213 | 12*13 | 160 | 120 | 110 | | 151-1214 | 12*14 | 160 | 151 | 140 | | 151-1417 | 14*17 | 220 | 205 | 180 | | 151-1618 | 16*18 | 220 | 220 | 202 | | 151-1719 | 17*19 | 250 | 225 | 205 | | 151-1722 | 17*22 | 250 | 290 | 265 | | 151-1819 | 18*19 | 250 | 295 | 270 | | 151-1922 | 19*22 | 280 | 310 | 280 | | 151-1924 | 19*24 | 310 | 355 | 320 | | 151-2123 | 21*23 | 285 | 405 | 360 | | 151-2126 | 21*26 | 320 | 450 | 410 | | 151-2224 | 22*24 | 310 | 455 | 415 | | 151-2427 | 24*27 | 340 | 520 | 475 | | 151-2430 | 24*30 | 350 | 550 | 501 | | 151-2528 | 25*28 | 350 | 580 | 530 | | 151-2632 | 26*32 | 370 | 640 | 570 | | 151-2730 | 27*30 | 360 | 705 | 645 | | 151-3032 | 30*32 | 380 | 805 | 735 | | 151-3036 | 30*36 | 405 | 1145 | 1030 | | 151-3234 | 32*34 | 400 | 1080 | 980 | | 151-3236 | 32*36 | 405 | 1145 | 1030 | | 151-3436 | 34*36 | 420 | 1165 | 1065 | | 151-3641 | 36*41 | 445 | 1600 | 1465 | | 151-4146 | 41*46 | 470 | 2077 | 1905 | | 151-4650 | 46*50 | 490 | 2530 | 2315 | | 151-5055 | 50*55 | 510 | 2580 | 2360 | | 151-5060 | 50*60 | 520 | 3002 | 2745 | | 151-5560 | 55*60 | 530 | 3203 | 2905 | | 151-6070 | 60*70 | 560 | 4105 | 3605 |
|
