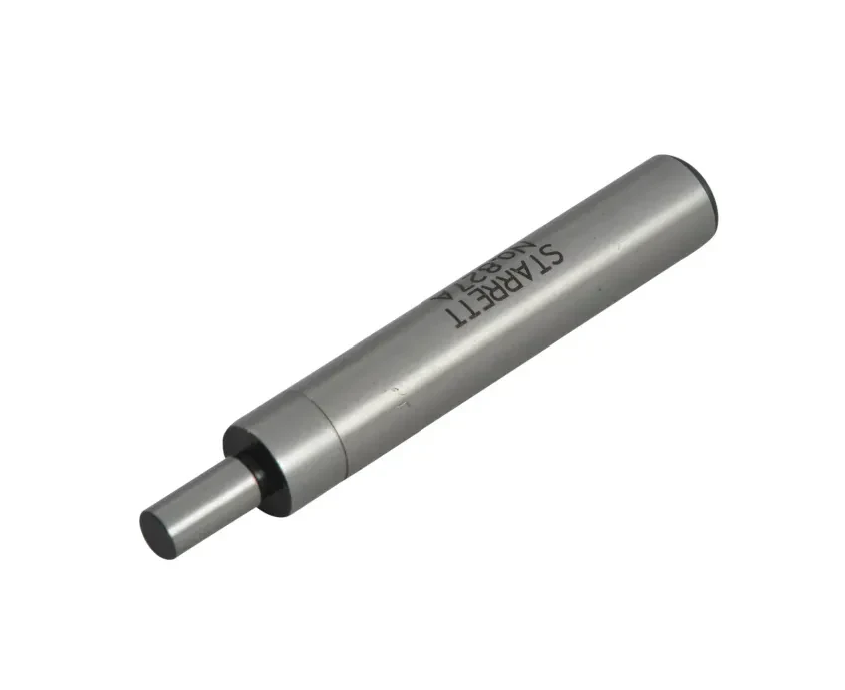

Starrett 827A Edge Finder - Single End Body Diameter 0.375in Contact Diameter .2in
Workpieces with straight edges, shoulders, grooves, studs, dowels, centre points and scribed lines can all be quickly and accurately located with this handy tool. Made of tool steel, hardened, ground and lapped.
Description: Single end
Body diameter: 0.375 Inch
Contact diameter: 0.200 Inch
Product Specifications:
| Item | Edge Finder |
| Body Diameter (in) | 3/8" |
| Construction | Tool Steel |
| End Type | Single |
| Features | Centre Points And Scribed Lines, Dowels, Edge Finders, Flats, Grooves, Ground And Lapped, Round Work, Shoulders, Straight Edges, Studs, Tool Steel Body And Contacts |
| Includes | Protective Sleeve |
| Length | 3" |
| No. Of Pieces | 1 |
| Overall Length | 3" |
| Shank Dia. | 3/8" |
| Single Or Double End | Single End |
| Tip Dia. | 1/5" |
| Tip Shape | Cylindrical |
Shipping Info:
| Ship weight (kg) | 0.045 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 4.83 |
| HS code | 9017800000 |
| Country of Origin | US |
Product Details:
- Used for detecting workpiece edges when performing milling machine work
- Body and contacts manufactured from tool steel, ground and lapped to close tolerances
- Straight edges, flats, shoulders, grooves, round work, studs, dowels, centre points and scribed lines can be accurately located with this tool
- Provided with an attractive protect
