Features

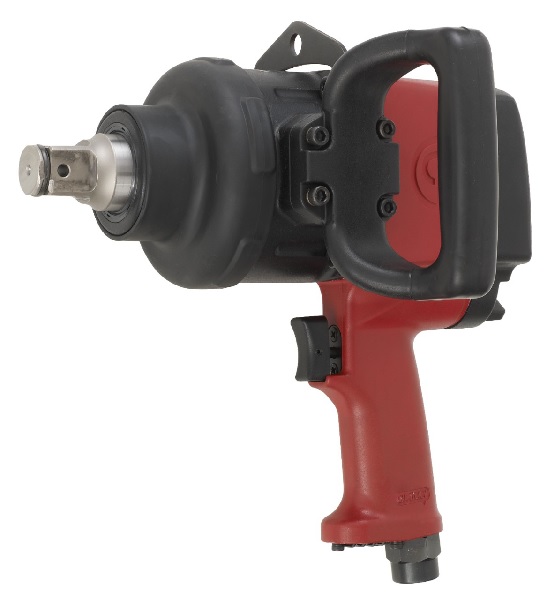

1" Industrial Pistol impact wrench
Oil Bath Pinless rocking dog clutch
Durable Aluminum body & Rubber protective cover on clutch housing
D-type side handle with Rubber grip
Dual (hole & ring) type socket retainer
Removable hole plate for suspension
Metal trigger & reverse knob for longer durability
3-positions regulator & easy reverse
Pinned drive for socket retention
| | Metric | Imperial |
|---|
| Model | CP6910-P24 | |
| Part number | 6151590070 | |
| Actual air consumption | 19 l/s | 40.2 cfm |
| Air inlet thread size | 1/2 " | |
| Blows per minute | 650 | |
| Clutch type | Pinless Rocking Dog - Oil bath | |
| Free speed | 5000 rpm | |
| Handle type | Pistol | |
| Length | 290 mm | 11.4 " |
| Maximum Torque (reverse) | 2600 Nm | 1920 ft.lbs |
| Min. hose size | 13 mm | 1/2 " |
| Net weight | 10.2 kg | 22.5 lb |
| Power/weight ratio | 254.9 Nm/kg | 85.3 ft.lb/lb |
| Side to center | 55 mm | 2.2 " |
| Socket retainer | Dual (hole+friction) | |
| Sound Power | 108 db(A) | |
| Sound pressure | 97 db(A) | |
| Square drive | 1 " | |
| VST2 | 37.7 | |
| Vibration | 8.9 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 2 1/2 m/s² | |
| Working Torque Range (fwd) | 500 - 2,100 Nm | 370 - 1,550 ft.lbs |
