Details
• Compact
• Durable
• Easy to handle
• Insulation & Comfort
• Rugged
Pinned drive and stainless steel attachment point
Supplied in IP67 case in tool control foam with six point sockets;
| 1/2'' Drive 10mm std |
| 1/2'' Drive 13mm std |
| 1/2'' Drive 17mm std |
| 1/2'' Drive 19mm std |
| 1/2'' Drive 22mm std |
| 1/2'' Drive 24mm std |
| 1/2'' Drive 27mm std |
| 1/2'' Drive 30mm std |
| 1/2'' Drive 32mm std |
| 1/2'' Drive 36mm std |
| 1/2'' Drive 41mm std |
With pin push tool for socketry equipment

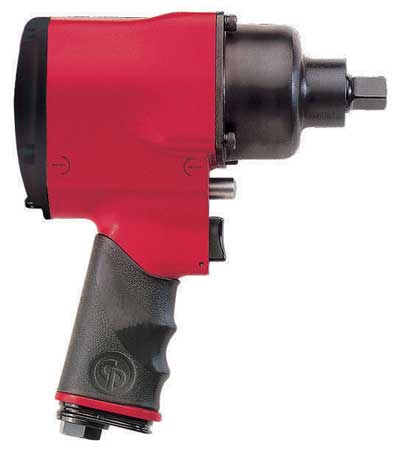

Air tool specification
| Weight (kg) | 1 |
|---|
| Part Number | 8941007261 |
|---|
| Actual Air Consumption @ Load (CFM / l/s) | 12 / (5.7) |
|---|
| Air Inlet Thread Size (in.) | 1/4 |
|---|
| Average Air Consumption (CFM / l/s) | 3 / (1.4) |
|---|
| Free Speed (RPM) | 8500 |
|---|
| Length (mm / in.) | 152 / (6) |
|---|
| Max Torque REV (Nm. / ft.lb) | 271 / (200) |
|---|
| Noise Level (dBA) | 93 |
|---|
| Torque Range (Nm) | 54-230 |
|---|
| Torque Range (ftlbs) | 40-170 |
|---|
| USP | Very compact 1/2" tool |
|---|
| Manufacturer | Chicago Pneumatic |
|---|
| Min. Hose Size (mm / in.) | 10 / (0.375) |
|---|
