State-of-the-art 4-pole compact hot water pressure washer with unique eco! efficiency mode that reduces diesel consumption by 20% without compromising daily cleaning performance.

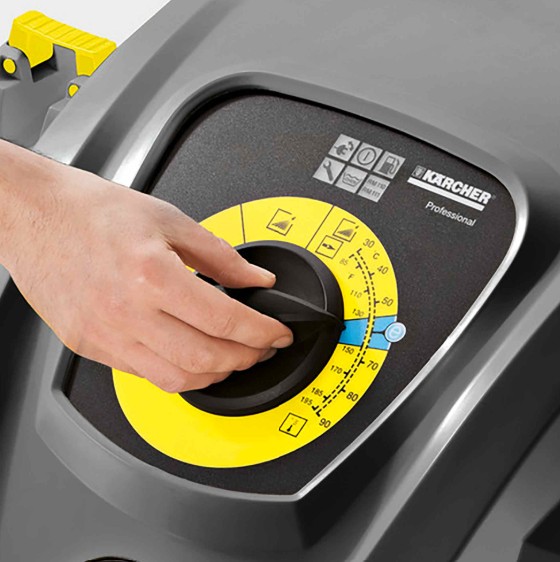

The machine's 4-pole motor runs more slowly than a standard 2-pole motor, reducing operating noise and prolonging service life. The HDS 6/10-4 C also features Kärcher’s unique Machine Protector system that prolongs component life and provides a 3-year burner coil warranty. With central one-button operation, excellent mobility and superb cleaning performance the HDS 6/10-4 is easy to set-up, intuitive to operate and cheap to run.
Reliability
- Water softening system protects the heating coil against calcification damage.
- Large water filter protects pump against damage.
- An integrated exhaust gas thermostat switches off the drive motor if the exhaust gas temperature exceeds 300°C.
Mobility

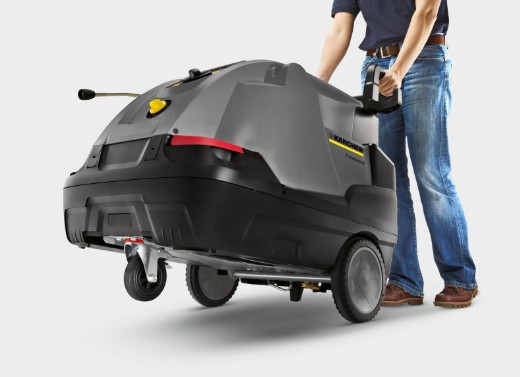

- Jogger principle with large wheels and steering roller.
- Large integrated handles in the chassis.
- Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners
- Fatigue-free work at last: the EASY!Force high pressure gun.
- EASY!Lock quick-release locks: durable and robust. And five times faster than a standard screw connection.
SPECIFICATIONS
Technical data
| Current type (Ph/V/Hz) | 1 / 240 / 50 |
| Flow Rate (l/h) | 320 - 610 |
| Operating pressure (bar/MPa) | 30 - 105 / 3 - 10.5 |
| Temperature (supply 12°C) (°C) | max. 80 |
| Power rating (kW) | 3 |
| Consumption fuel oil (kg/h) | 3.5 |
| Heating oil consumption, eco!efficiency (kg/h) | 2.8 |
| Power cable (m) | 5 |
| Fuel tank (l) | 15 |
| Weight (with accessories) (kg) | 111.2 |
| Weight incl. packaging (kg) | 120 |
| Dimensions (L × W × H) (mm) | 1060 x 650 x 920 |
Scope of supply
- Trigger gun: EASY!Force Advanced
- High-pressure hose: 10 m, DN 6, 250 bar
- Spray lance: 1050 mm
- Power nozzle
Equipment
- SDS system
- Pressure switch control
- Integral fuel and detergent tank
