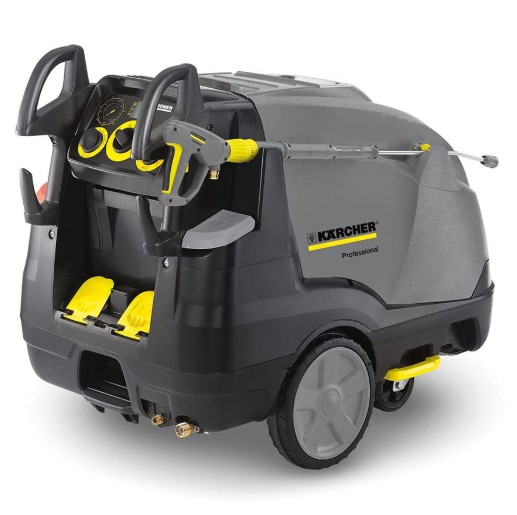

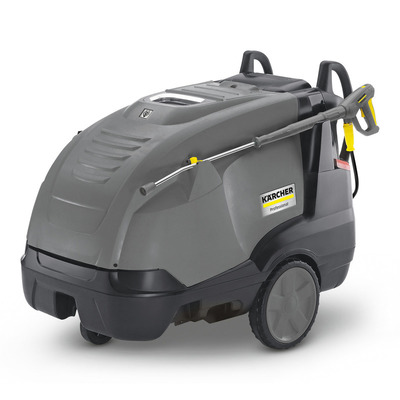

Kärcher’s HDS middle class hot water pressure washers reach very high levels of performance, reliability and economy. With innovative features such as the eco!efficiency mode, offering fuel savings of up to 20% without compromising cleaning performance, 4-pole motors for high performance and long life, on-board diagnostics, and 3-year burner coil warranty, the HDS middle class range provides our customers with the toughness, cleaning power, and low running costs they demand. The HDS 7/10-4 M features a 4-pole, air-cooled electric motor with long-life bearings and a 3-piston axial pump with ceramic pistons. With water flow of up to 700 litres per hour, and up to 100 bar pressure, the 7/10 is a great all-round machine with superb performance for daily and deep cleaning jobs.

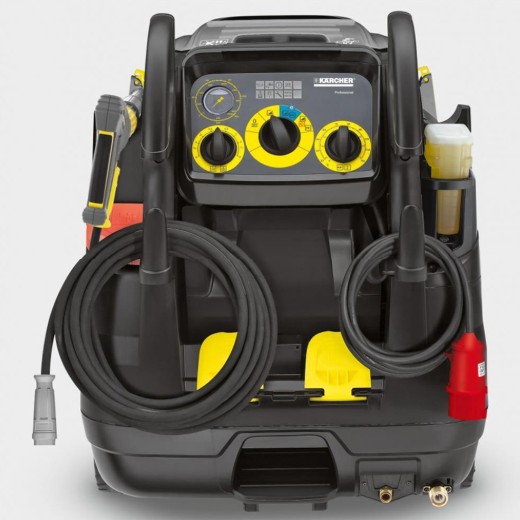

Storage
- Safe and ample storage for protective gear, accessories and cleaning agents.
- Storage hooks for power cord and high-pressure hose.

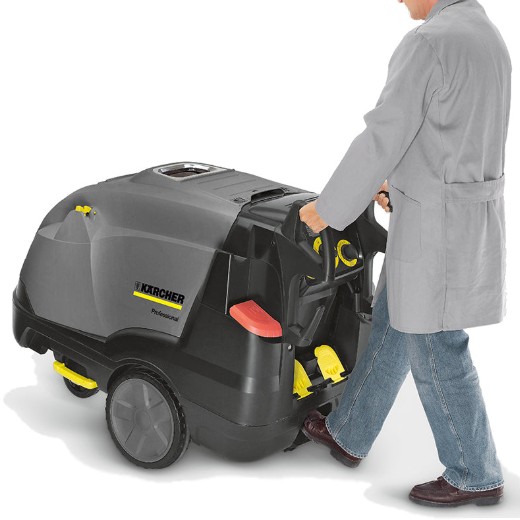

Mobility concept
- "Jogger" design with large rubber tyre wheels and swivel castors.
- Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
Save energy and time: EASY!Force high-pressure guns and EASY!Lock quick-release locks.
- At last – work without getting tired: the EASY!Force high-pressure gun.
- EASY!Lock quick-release locks: durable and robust. And five times faster than screws.
Technical data
Current type (Ph/V/Hz) | 1 / 240 / 50 |
Flow Rate (l/h) | 350 - 700 |
Operating pressure (bar/MPa) | 30 - 100 / 3 - 10 |
Temperature (supply 12°C) (°C) | 80 - 155 |
Power rating (kW) | 3.4 |
Consumption fuel oil (kg/h) | 4.6 |
Heating oil consumption, eco!efficiency (kg/h) | 3.7 |
Power cable (m) | 5 |
Fuel tank (l) | 25 |
number of simultaneous users | 1 |
Weight (with accessories) (kg) | 159.3 |
Weight incl. packaging (kg) | 171.3 |
Dimensions (L x W x H) (mm) | 1330 x 750 x 1060 |
Equipment
- Trigger gun, EASY!Force Advanced
- High-pressure hose, 10 m, Longlife
- Spray lance, 1050 mm
- Power nozzle
- ANTI!Twist
- Tanks for detergent, scale inhibitor and fuel can be filled from outside
- Control panel with indicator lamps
- Pressure switch control
- Electronic service control with LED display
- Two detergent tanks
- Dry running protection
