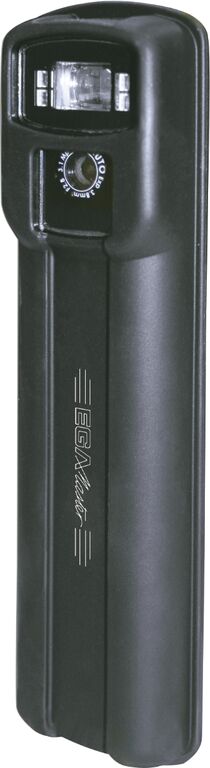

MasterEx 79789
The MasterEx 79789 intrinsically safe digital camera is the perfect visualisation tool for use in hazardous areas. ATEX and IECEx certified, MasterEx 79789 can be used in all sectors of industry including Chemical & Pharmaceutical plants, Oil &Gas production platforms, Refineries, Mining and Emergency Services to name but a few.
Made of rugged injection moulded anti-static plastic, MasterEx 79789 is IP65 rated and is suitable for use in the most arduous environments. Due to its long slim lightweight enclosure weighing less than 200 g, MasterEx 79789 lends itself to single handed operation, making it convenient to carry in your pocket.
Equipped with its super bright 4 LED flash, anti-shake technology and 3.1 mega pixel resolution, MasterEx 79789 provides high quality images in all Hazardous Area environments.
Data transfer to any computer in the safe area is simple and easy to undertake via a USB port utilising Picture Transfer Protocol (PTP) which is initiated automatically.
All images are date and time stamped to create a chronological history and are coupled to the unique function of Voice Annotation Audio records, which are systematically matched to the image file name.
- ZONES 0, 1, 2 GAS M1 MINING
12M - CLICK IMAGE
- Lens
Automatic focus, 3,39 mm - Focal distance
5 cm2xAA - ATEX marking
#[Β]# II 1 G Ex ia IIB T4/T3 Ga / #[Β]# II 2 G Ex ia IIC T4 Gb -20 °C ≤ Ta ≤ +60 °C / #[Β]# I M1 Ex ia I Ma 0 °C ≤ Ta ≤ +60 °C - IECEx designation
Ex II 1 G Ex ia IIB T4/T3 Ga Ex II 2 G Ex ia IIC T4 Gb -20 °C ≤ Ta ≤ +60 °C Ex ia I Ma 0 °C ≤ Ta ≤ +60 °C - Dimensions
132mm x 32mm x 22mm - Weight
200gr - Material
Reinforced antistatic plastic - Auto power-off
3 mins - Anti Shake
• - Voice annotation
WAV - Resolution
3,1 MegaPixel (2048x1536) - Internal memory
1Gb - Flash
4x LED of high brightness - Data transference
USB 1.1 - Protection class
IP65 - Working temperature
Group II: -20 °C - +60 °C Group I: 0° - +60 °C - Image date and time stamping
• - Image
JPG - Image storage with time and date
• - USB
• - Protective rubber cover
•ZONES 0, 1, 2 GAS M1 MINING
