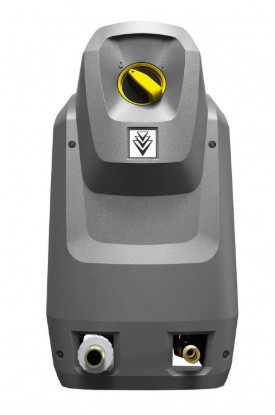

The stand-alone pump unit out of the HD Middle class is the perfect solution for integrated high-pressure pumps e.g. stationary machine and production progress.
A reliable high-pressure pump which is protected by a robust plastic chassis and not more. The machine is intended for stationary use and can be mounted and operated both horizontally and vertically.
A 3-point support on the back enables vertical or horizontal mounting. Access to the high-pressure pump and the electronic components is easy and therefore service-friendly – the pump itself is effectively protected from dirt in reclaim water by means of a large water fine filter.
High-quality equipment
Automatic pressure relief for protecting the components extends their service life. Powerful, 2-pole, air-cooled electric motor. High-quality brass cylinder head.
Flexible operation
Designed for upright and horizontal operation.
Prepared for stationary operation
Simple and robust 3-point attachment for wall mounting on the rear of unit. Space-saving, compact design. Integrated storage options reduce the set-up times.
Easy servicing
- Easy access to the cylinder head when bottom of machine is opened.
- Fast access to electrical box through simple removal of cover.
- Large, easily accessible water fine filter for protecting the pump against dirt particles in water.
Increased energy efficiency
- Newly developed 3-piston axial pump with considerably reduced flow and pressure losses.
- 20 percent increase in cleaning performance and energy efficiency.
Technical data
| Current type (Ph/V/Hz) | 1 / 100 / 50 |
| Flow Rate (l/h) | 600 |
| Water feed temperature (°C) | 60 |
| Operating pressure ( /MPa) | 110 / 11 |
| Max. Pressure (bar/MPa) | 165 / 16.5 |
| Power rating (kW) | 2.9 |
| Power cable (m) | 5 |
| Water feed | 3/4″ |
| Colour | anthracite |
| Weight (with accessories) (kg) | 25 |
| Weight incl. packaging (kg) | 27.5 |
| Dimensions (L x W x H) (mm) | 290 x 300 x 565 |
